The Novus Angiographic & Diagnostic Catheter provide soft bumper tip material designed to reduce risk of trauma during contrast injection. Ergonomic catheter tip stability and excellent contrast flow result in a clear image of the vasculature during procedure. Novus has Tungsten layering in the distal part of catheter results in a highly radiopaque catheter tip that promotes clear fluoroscopic visualization. Advanced tip construction provides the balance of flexibility and the shape retention required for successful access and transition also facilitate entry and crossing. Predictable torque response designed to facilitate exact positioning. Novus offers advanced and braided shaft designed to promote kink resistance and push-ability to ease advancement through tortuous and distal anatomy. Novus is available with wide variety of shapes provides the versatility required to meet individual clinical requirements. Proprietary coating enhances lubricity for the insertion without sheath and optimum tracking.

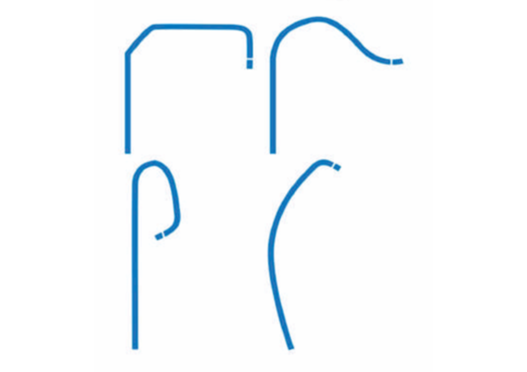

Shape Name | Shape Code | Length(CM) | Product Code(5 FR) | Product Code(6 FR) |
---|---|---|---|---|

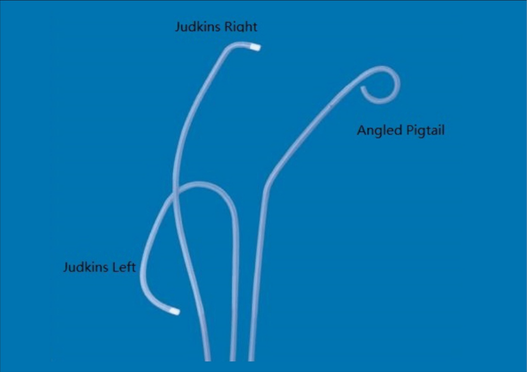

Judkins Right | JR 3.0 | 100 | RC5JR30100A | RC6JR30100A |
Judkins Right | JR 3.5 | 100 | RC5JR35100A | RC6JR35100A |
Judkins Right | JR 4.0 | 100 | RC5JR40100A | RC6JR40100A |
Judkins Left | JL 3.0 | 100 | RC5JL30100A | RC6JL30100A |
Judkins Left | JL 3.5 | 100 | RC5JL35100A | RC6JL35100A |
Judkins Left | JL 4.0 | 100 | RC5JL40100A | RC6JL40100A |
Amplatz Right | AR I | 100 | RC5AR1100A | RC6AR1100A |
Amplatz Right | AR II | 100 | RC5AR2100A | RC6AR2100A |
Amplatz Left | AL I | 100 | RC5AL1100A | RC6AL1100A |
Amplatz Left | AL II | 100 | RC5AL2100A | RC6AL2100A |
Pigtail | Pigtail | 110 | RC5PIG110A | RC6PIG110A |
Pigtail | Pigtail | 145 | RC5PIG145A | RC5PIG145A |
Pigtail | Pigtail | 155 | RC5PIG155A | RC6PIG155A |
Tiger | RT | 100 | RC5RT100A | RC6RT100A |
